OE Series
-

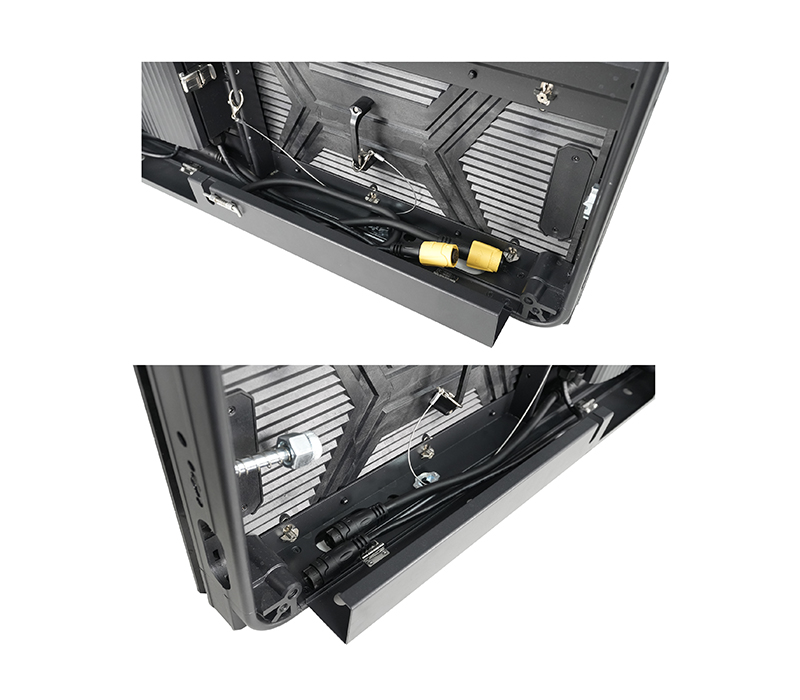

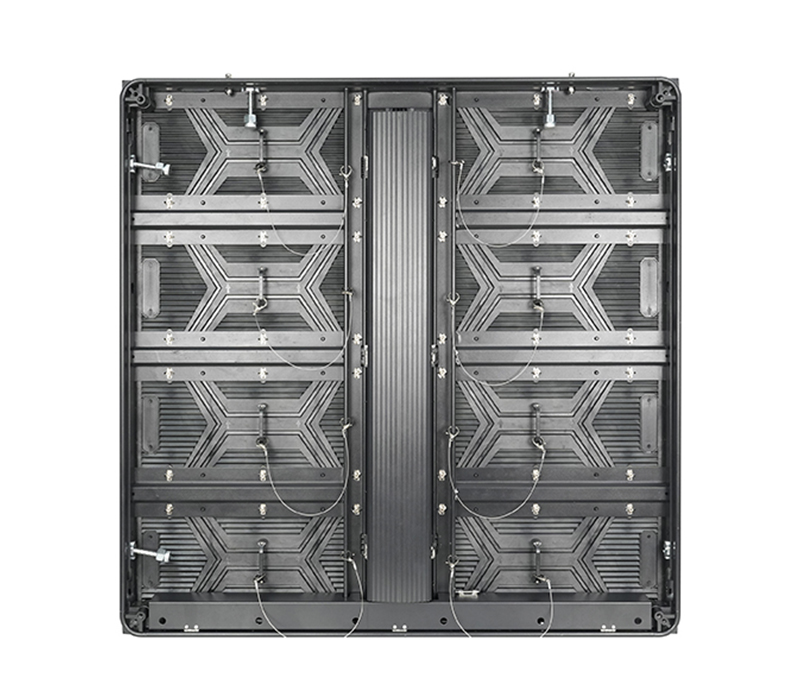

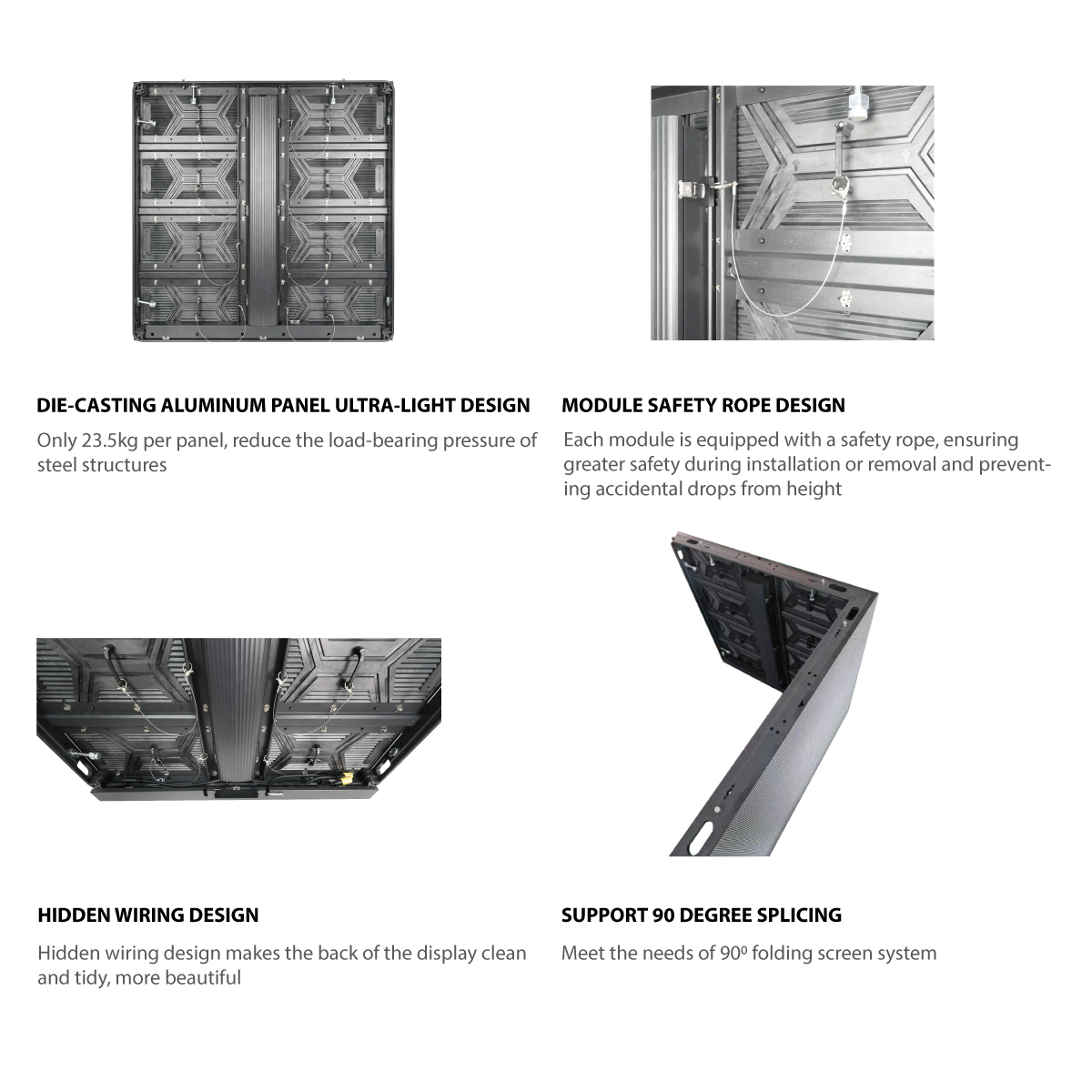

Ultra lightweight led display only 23.5kg(51.8lbs) per panel, have 3.9, 4.8, 6.2, 7.8 10.4 pixel pitch for option.Die-cast aluminum cabinet has higher precision, easy for splicing. Support front service can meet all kinds of installation scenario
| OE-3.9 | OE-4.8 | OE-6.2 | OE-7.8 | OE-10.4 | |
| Physical Pitch | 3.91mm/0.15" | 4.81mm/0.19" | 6.25mm/0.25" | 7.81mm/0.31" | 10.42mm/0.41" |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 65536px/m2 | 43264px/m2 | 25600px/m2 | 16389px/m2 | 9216px/m2 |
| Module Dimension(WxH) | 500x250mm / 19.68"x9.84" | ||||
| Panel Dimension(WxHxD) | 1000x1000mm / 39.37"x39.37" | ||||
| No. of Module/panel(WxH) | 2x4 | ||||
| Module Resolution | 128x64px | 104x52px | 80x40px | 64x32px | 48x24px |
| Panel Resolution | 256x256px | 208x208px | 160x160px | 128x128px | 96x96px |
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 23.5kg / 51.8lbs | ||||
| Gray Scale | 16bit | ||||
| Contrast Ratio | 4000:1 | ||||
Avg. Power Consumption | 218w/m2 | ||||
Max. Power Consumption | 650w/m2 | ||||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | ||||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | ||||
| Refresh Rate | 3840hz | ||||
| Brightness | ≥5500nits | ||||
| Viewing Angle(H/V) | 140°/120° | ||||
| Expected Lifetime | 100,000hrs | ||||
| Max. Stacking/Hanging | 10 | ||||
| Service | Front | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
| Certification | CCC,CE,ETL,RoHS | ||||
