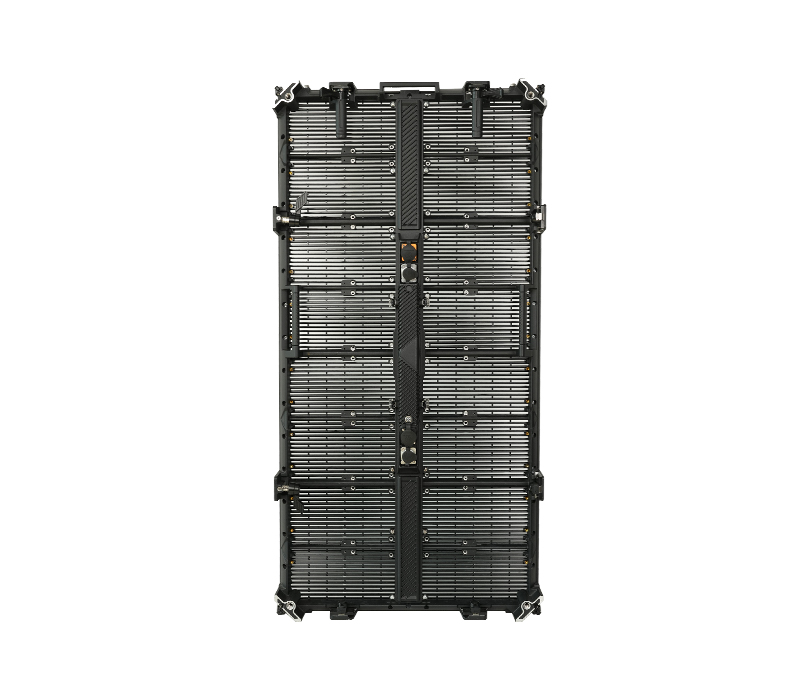

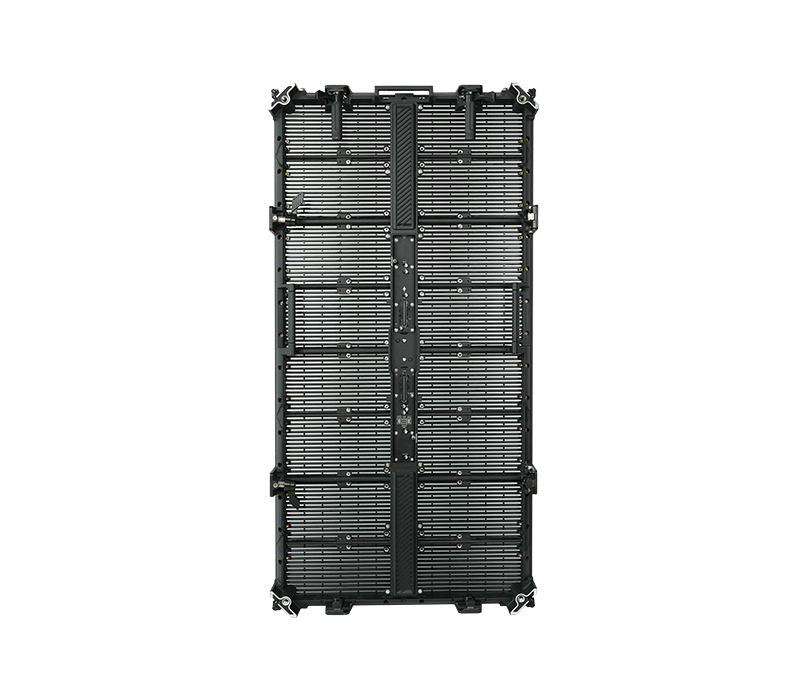

TSR Series
-

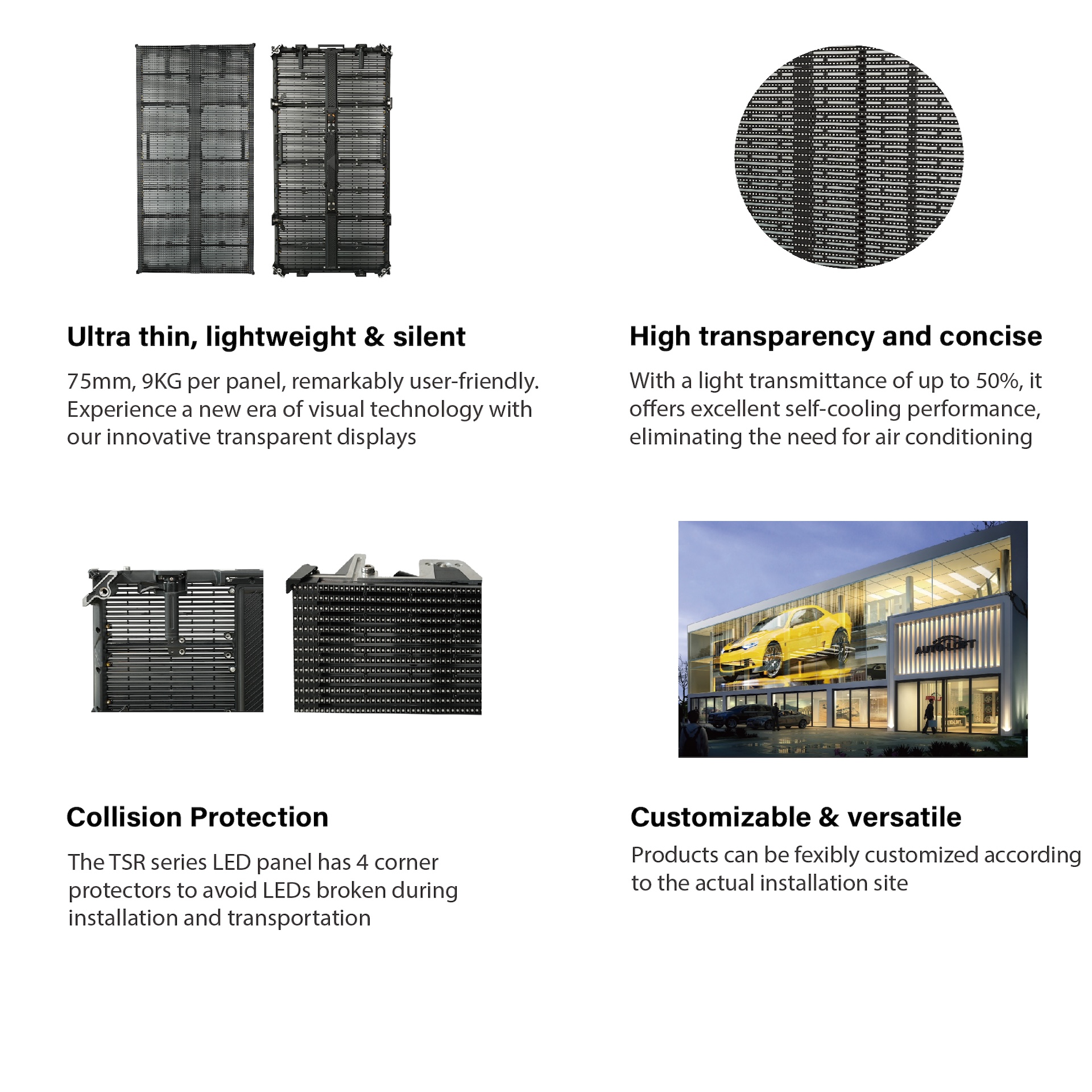

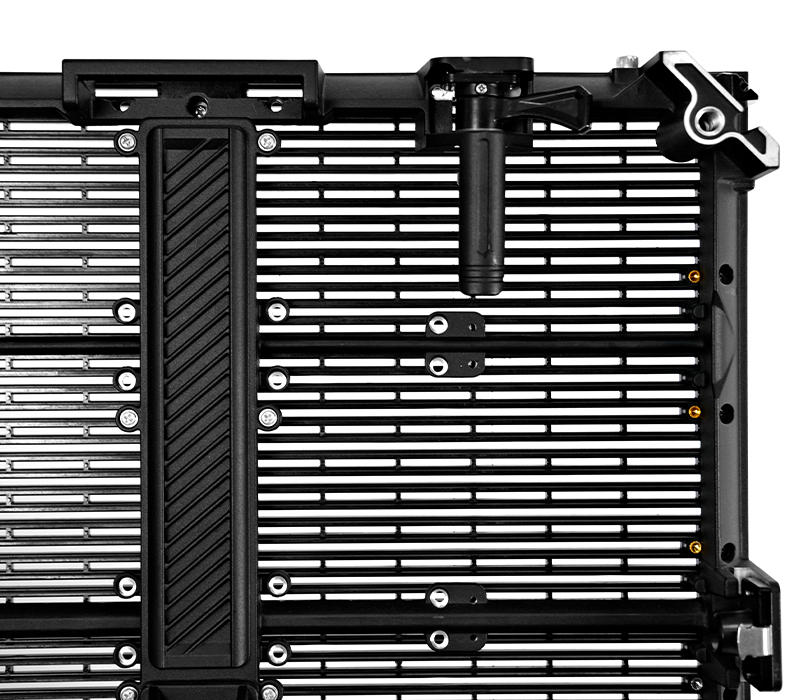

Transparent led display for rental business or events. die casting panel design, lightweight & high transparency, fast lock design, easy to install
RELATED PRODUCTS
| TSR-3.9-7.8-1 | TSR-3.9-7.8-2 | TSR-3.9-7.8-3 | TSR-3.9-7.8-4 | |
| Physical Pitch | 3.9-7.8mm | 3.9-7.8mm | 3.9-7.8mm | 3.9-7.8mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD1921 | SMD1921 |
| Pixel Density | 32256px/m2 | 32256px/m2 | ||
| Module Dimension(WxH) | 500x125mm | 500x125mm | ||
| Panel Dimension(WxH) | 500x1000mm | 500x1000mm | ||
| No. of Module/panel(WxH) | 1x8 | 1x8 | ||
| Module Resolution | 128x16px | 128x16px | ||
| Panel Resolution | 128x128px | 128x128px | ||
| Panel Material | Aluminum | Aluminum | ||
| Panel Weight | <14kg/m2 | <14kg/m2 | ||
| Gray Scale | 16bit | 16bit | ||
| Contrast Ratio | 6000:1 | 6000:1 | ||
| Avg. Power Consumption | 180w/m2 | 180w/m2 | ||
| Max. Power Consumption | 560w/m2 | 560w/m2 | ||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | -10°C - 60°C / 10% - 60% | ||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | -30°C - 60°C/ 10% - 60% | ||
| Refresh Rate | 7680hz | 7680hz | ||
| Brightness | ≥600nits | ≥1200nits | ≥1800nits | ≥5500nits |
| Viewing Angle(H/V) | 160°/140° | 160°/140° | ||
| Expected Lifetime | 100,000hrs | 100,000hrs | ||
| Service | Rear | Rear | ||
| IP Rating(Front/Rear) | IP30 | IP65/IP54 | ||
| Certification | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS | ||
