TSF Series
-
Transparent led display for indoor fixed installation. ultra thin panel design, lightweight. and with high transparency. support front & rear service, very easy for installation
RELATED PRODUCTS
| TSF-2.6-5.6 | TSF-3.9-7.8 | TSF-7.8 | TSF-10.42 | |
| Physical Pitch | 2.6-5.6mm/0.1"-0.22" | 3.9-7.8mm/0.15"-0.31" | 7.8mm/0.31" | 10.42mm/0.41" |
| Pixel Configuration | SMD1R1G1B | |||
| Pixel Density | 68352px/m2 | 32768px/m2 | 16384px/m2 | 9216px/m2 |

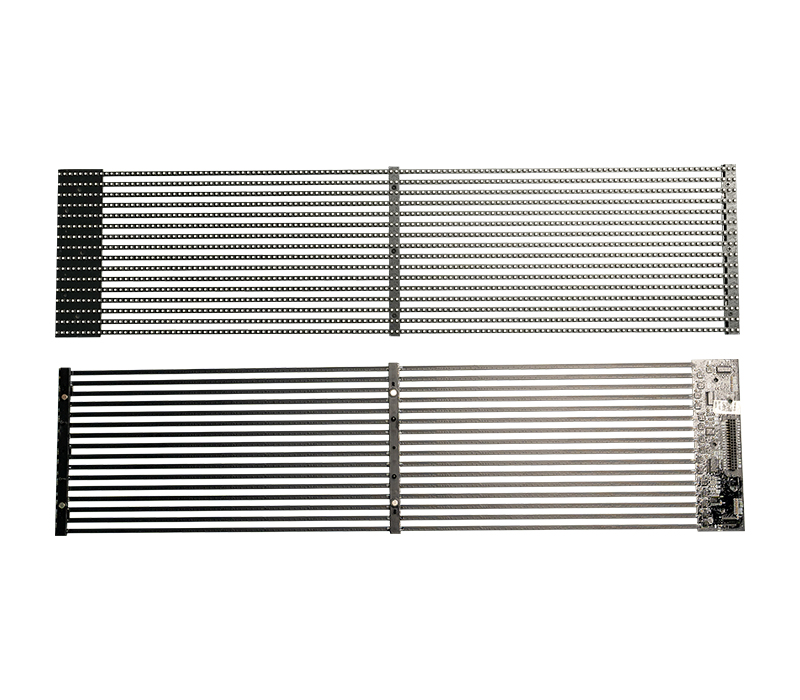

| Module Dimension(WxH) | 500x250mm/19.68"x9.84" 1000x250mm/39.37"x9.84" | |||

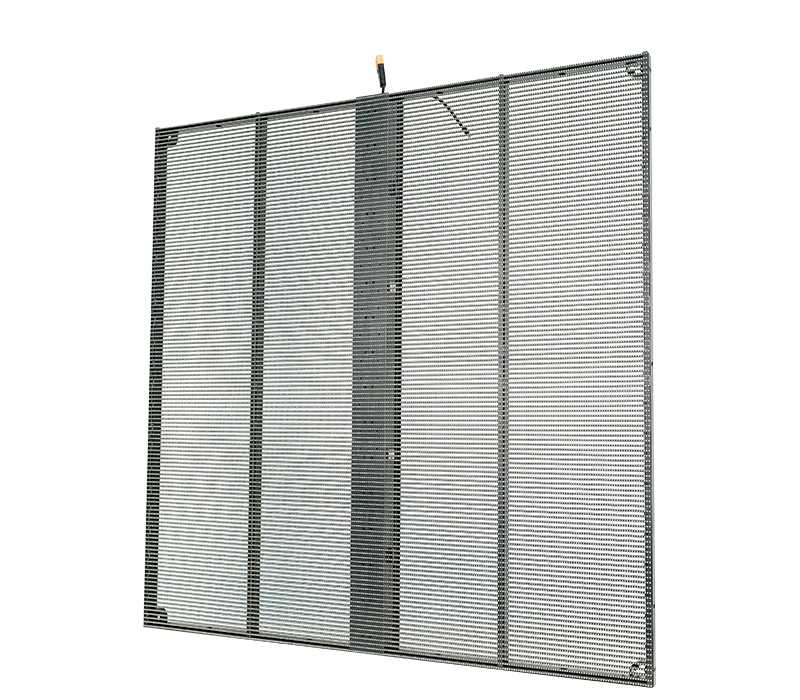

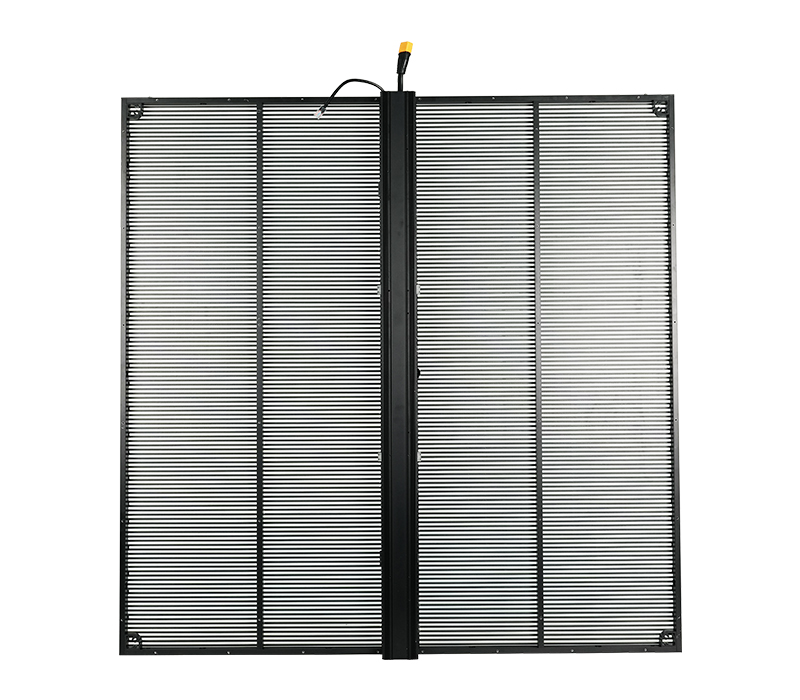

| Panel Dimension(WxH) | 1000x1000mm/39.37"x39.37" | |||
| No. of Module/panel(WxH) | 2x8 | |||
| Module Resolution | 192x89px 384x89px | 128x32px 256x32px | 64x32px 128x32px | 48x24px 96x24px |
| Panel Resolution | 384x178px | 256x64px | 128x128px | 96x96px |
| Panel Material | Aluminum | |||
| Panel Weight | 7kg / 15.43lbs | |||
| Gray Scale | 16bit | |||
| Contrast Ratio | 4000:1 | |||
| Avg. Power Consumption | 267w/m2 | 267w/m2 | 260w/m2 | 220w/m2 |
| Max. Power Consumption | 800w/m2 | 800w/m2 | 780w/m2 | 660w/m2 |
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | |||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | |||
| Refresh Rate | 3840hz | |||
| Brightness | 600~5500nits(customized) | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | 100,000hrs | |||
| Service | Front/Rear | |||
| IP Rating(Front/Rear) | IP30 | |||
| Certification | CCC,CE,ETL,RoHS | |||
